MC-10
Rugged Micro Mission Computer

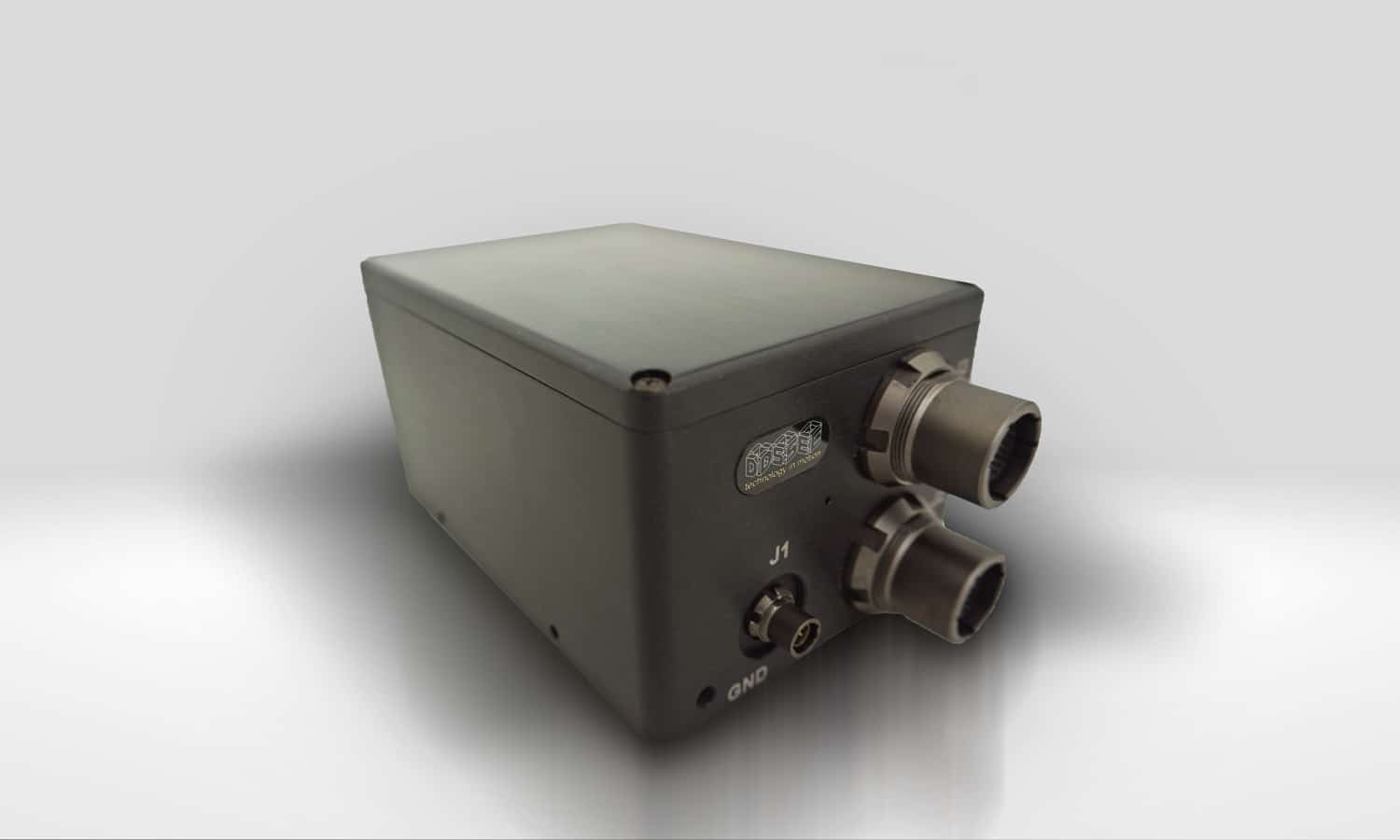

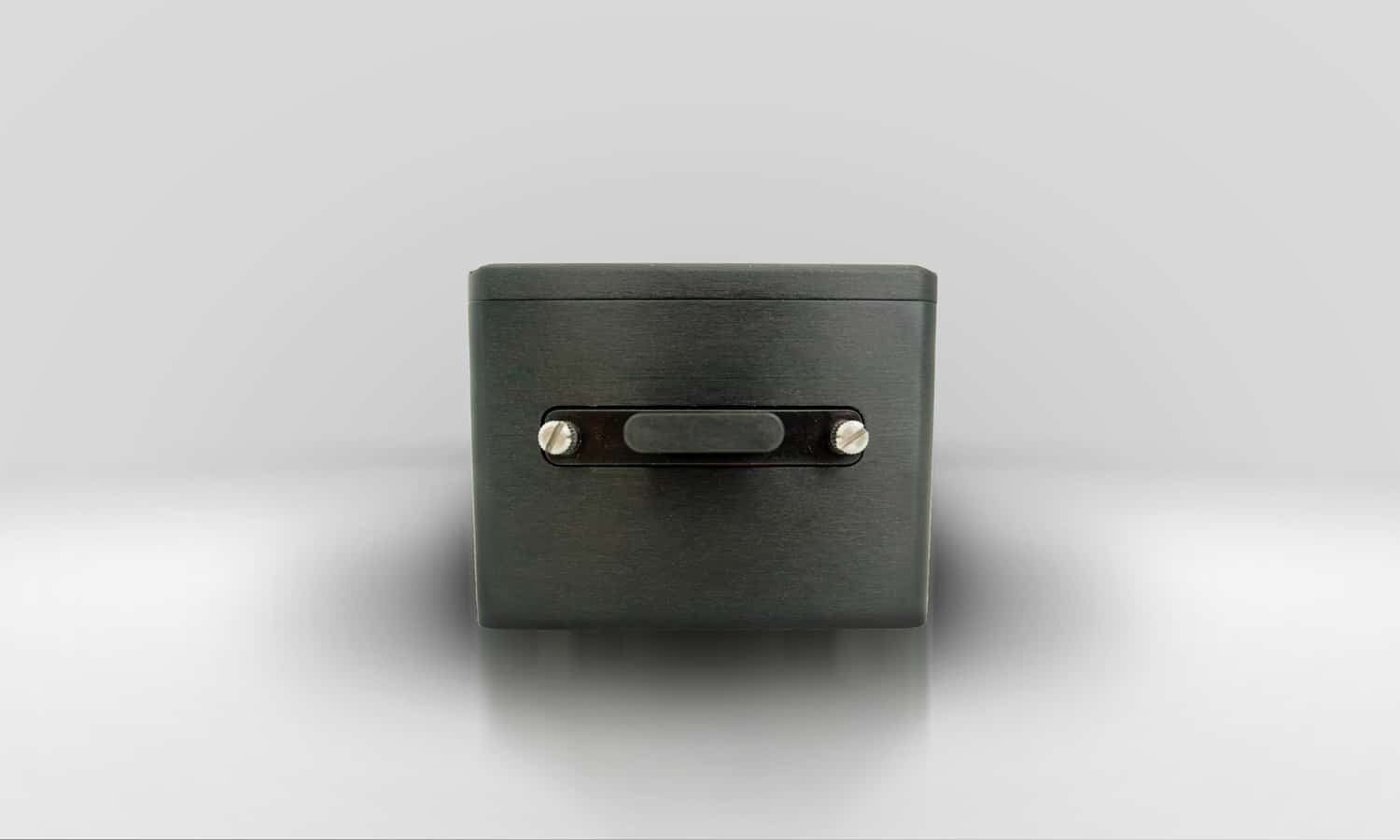

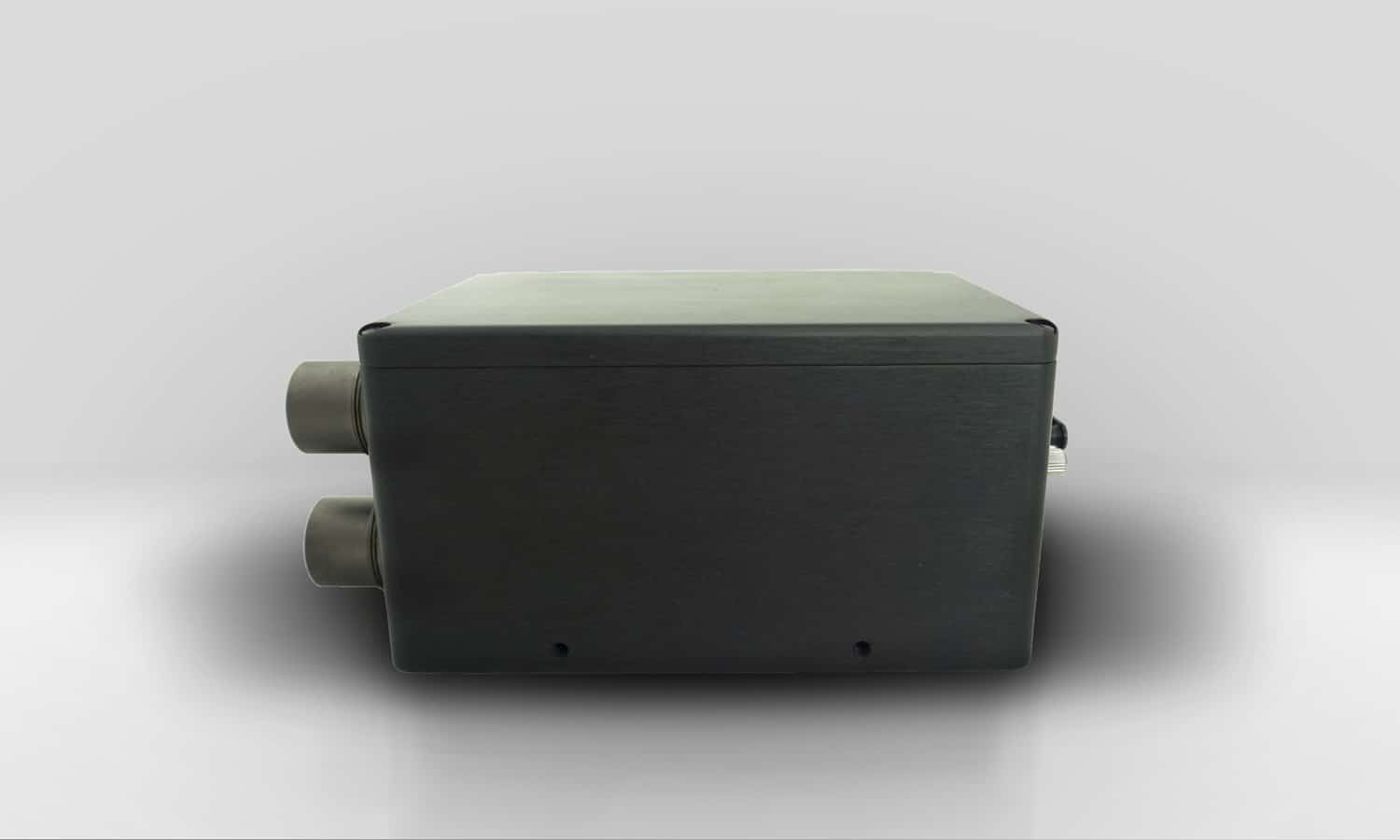

The Rugged Micro Mission Computer (MC-10) is a hardened stand-alone system that delivers powerful performance in a lightweight and miniature footprint. At less than 81in³ (6.7” x 4” x 3” including connectors) and 2lbs, this micro package is today’s solution for the mobile environment. Low power consumption, configuration flexibility, and cost efficiency make it an ideal solution for demanding applications in the military, industrial and commercial markets. Utilizing reliable Intel CPUs, the MC-10 has a robust I/O including digital video, (2) gigabit ethernet, (4) USB 2.0, (2) RS-232/RS-485, HD Audio, and GPIO. Designed with modularity in mind, the MC-10 can be customized with application specific expansion capabilities such as 1553, ARINC 429, CANBus, GPS, additional comm or GPIO ports, and video frame grabbers. The MIL-SPEC design ensures operability in environmental conditions as defined per MIL-Standards 461, 704, 810, 1275, 3009, and DO-160.
Technical Specifications
| System I/O | (2) Gigabit Ethernet; (4) USB 2.0 Ports; (2) RS-232/RS-485 Ports; Analog Audio Input and Output; Display Port, HDMI or DVI-D |
| Processor | Intel Atom Quad Core, 1.91GHz |
| Operating System | Windows or Linux |
| Memory | Configurable |
| Storage | Removable mSATA Hard Drive; 128GB, 256GB, 512GB or 1TB |
| Housing | Milled Aluminum, Black Hard Anodized |
| Wide Range DC Power Input† | 28 VDC (18-33 VDC) (per MIL-STD-704, 1275) |
| Power Conditioning | Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity |
| Expansion Options | ARINC429, CANBus, GPS, GPIO, HD-SDI, RS170, USB |
Field tested MIL-Spec Design
EMI-461
Decades of experience designing and building rugged electronics to meet the stringent requirements of EMI-461 come together in the MC-10.
MIL-STD 1275
Never worry about managing dropout, spikes, transients, or over voltage with the MC-10’s wide range internal power supply.
Fully Sealed
Bring on water, sand, dust, grease, and chemicals! The MC-10 series is protected to the IP67 standard for ingress of foreign substances.
Assortment of Processors
Designed and built with the widely available COM Express Type 10 module, the MC-10 Computer can utilize Atom, Celeron, and Pentium processor types with numerous chipsets. Configurable clock speed, RAM capacity, and memory allow end users to choose the most appropriate feature set.
