FHDRM

Full High Definition Rugged Monitor

Built with a Full HD 1920×1080 LCD, the FHDRM Display Series delivers a MIL-SPEC design with low-power consumption, high brightness backlight, and an ultra-thin form factor for critical operations requiring 1080p detail. The rugged FHDRM monitor ensures complete optical performance and full reliability while providing a small footprint for constrained spaces. Programmable bezel soft keys allow full control of external systems or a custom interface of internal display features (video processing, picture layout, user interface preferences, and navigation shortcuts). Multiple mounting options allow for seamless integration within any rugged system. The FHDRM Series is available in five sizes.

Technical Specifications

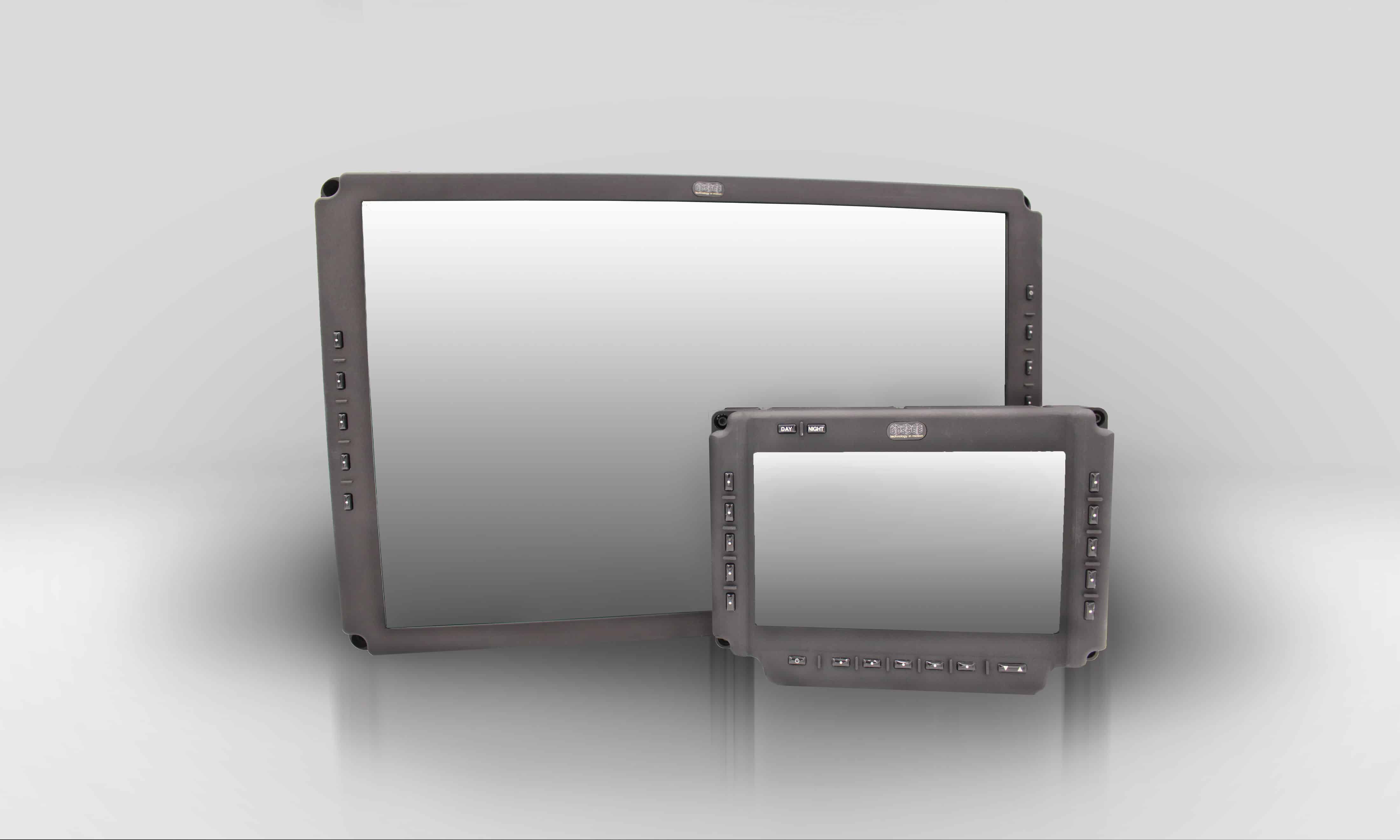

Display Sizes 7.0, 10.1, 13.3, 15.6, & 17.3″
LCD Resolution Full High Definition (1920 x 1080)

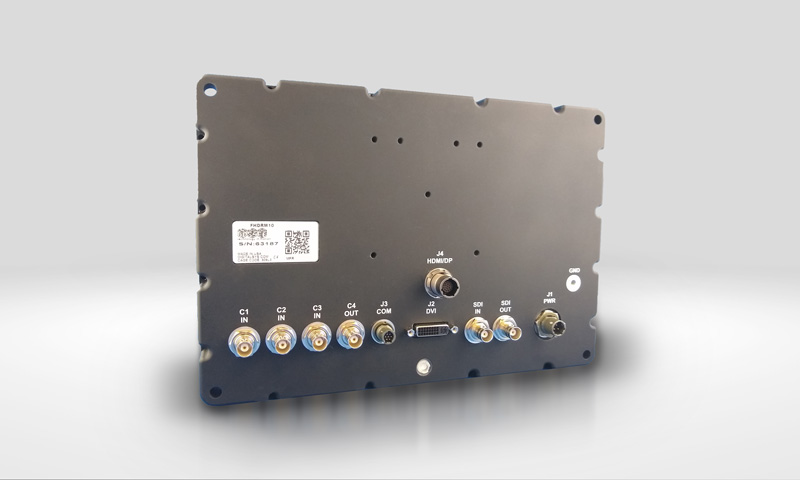

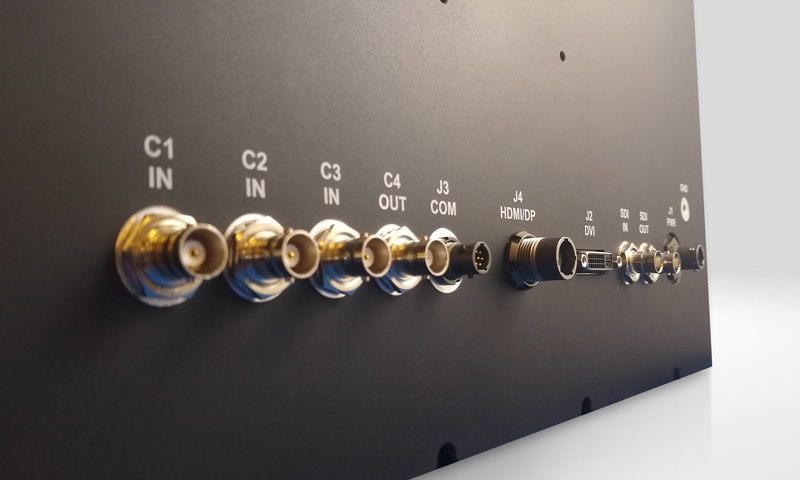

Video Inputs HD-SDI, HDMI, DVI/DisplayPort/VGA, RS170 (NTSC/PAL)
Video Outputs HD-SDI, RS-170 (NTSC/PAL)

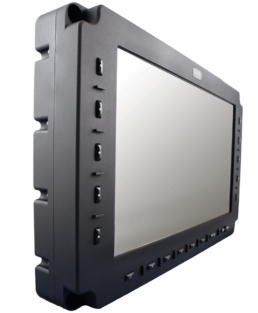

User Interface Programmable Bezel Keys, Optional Touch Screen
Options NVIS Compliance/Compatibility, Mounting Configurations
Power Input 10-36VDC
Modified Designs

Dual CANBus, RS-422, Additional HDMI and HD-SDI Inputs, USB Hub, Larger Format LCDs*

Standards MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160
*Contact DSE to learn more
**Specifications may change depending on size and configuration. See data sheet for specific details.

Diverse Digital & Analog Interfaces

Powerful Video Encoder

Utilize Picture-In-Picture settings, customized view preferences, and fine tune image scaling and positioning

+

Integrated Communications

Programmable bezel keys, resistive touch screen, and remote command/control allow easy interconnection with existing architecture

g

Customizable Configurations

Choose from unique options such as CANBus, GPIO lines, and fully customizable RS422 command structures.

Field Tested MIL-Spec Design

Z

EMI-461

Decades of experience designing and building rugged electronics to meet the stringent requirements of EMI-461 come together in the FHDRM.

MIL-STD 1275

Never worry about managing dropout, spikes, transients, or over voltage with the FHDRM’s wide range internal power supply.

~

Fully Sealed

Bring on water, sand, dust, grease, and chemicals!  The FHDRM series is protected to the IP67 standard for ingress of foreign substances

Field Tested, Lab Validated

In early 2020, DSE’s FHDRM 10” display was selected for an Intelligence, Surveillance and Reconnaissance (ISR) application by a global-leading systems integrator specializing in the aerospace and defense industries. Before fielding the FHDRM in mid-2020 on a multi-use fixed wing aircraft program, DSE was contracted to validate the FHDRM’s performance through a third-party laboratory. See how the FHDRM performed when put to the test.
