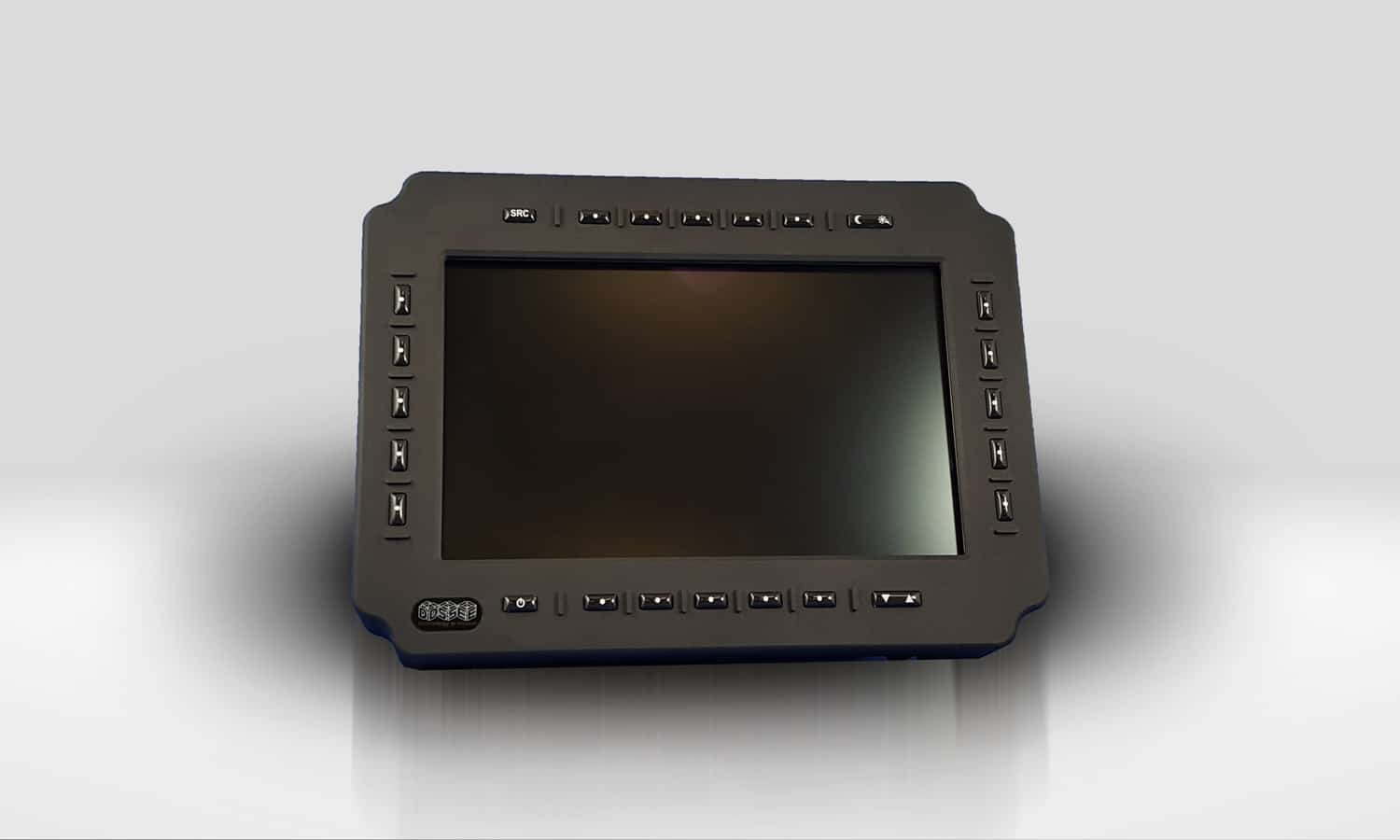

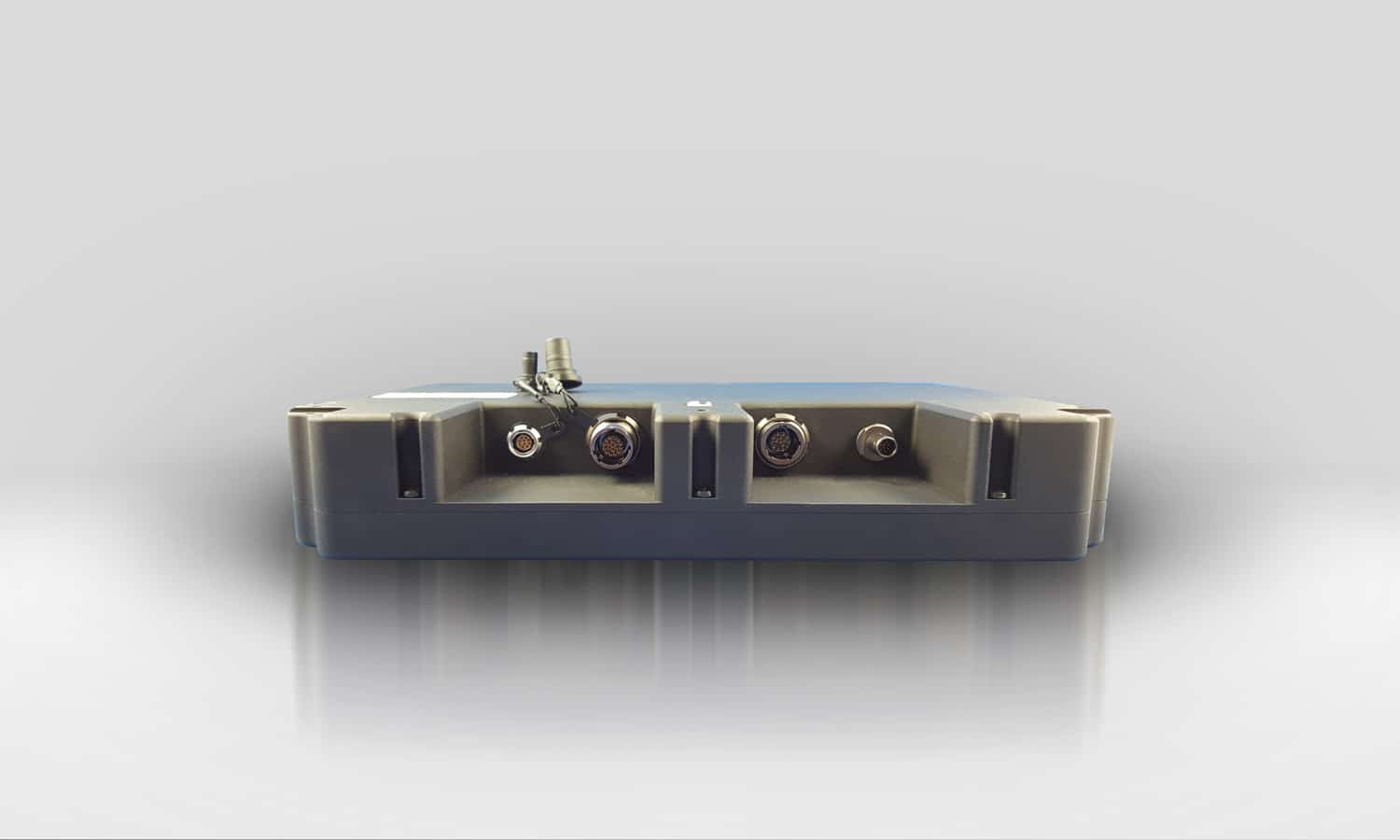

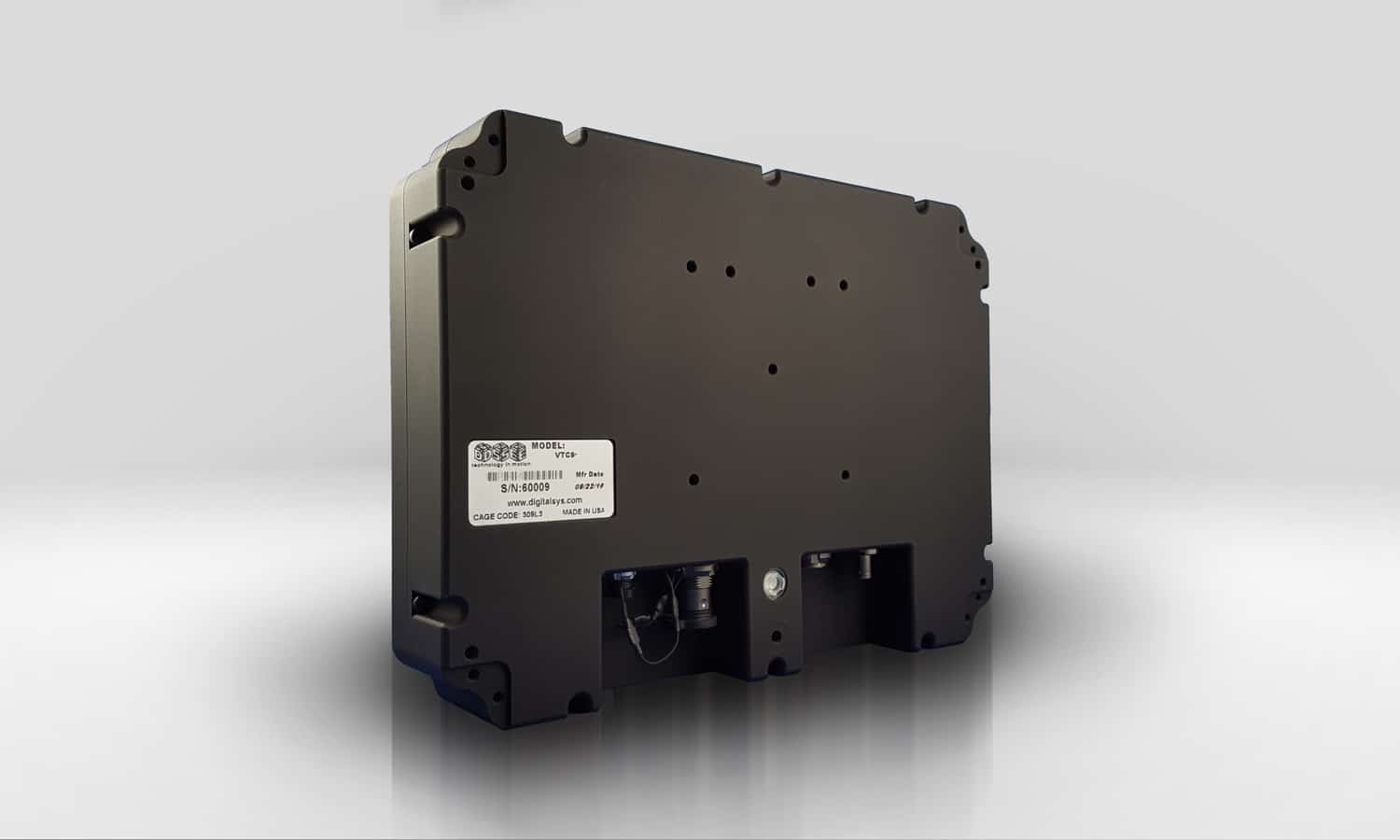

VTC

Victory Thin Client Display

The VTC Gigabit Ethernet Display is the next generation ruggedized solution for modern tactical vehicle systems. Supporting an open architecture system level approach of the VICTORY initiative, the VTC is a centralized interface for all Vetronic components. This DVR-capable display with a removable 256GB SSD, features touch screen and programmable bezel keys to ensure the connected C4ISR subsystems network is accessible at all times. Whether viewing situational awareness over Ethernet (GigE Vision, GenICam, etc.), vehicle diagnostics, or other inputs supported on the digital backbone, the VTC delivers exceptional optical performance in extreme MIL-SPEC environments. Advancing SWaP, interchangeability, and user interfaces, the VTC is the answer to video over Ethernet on a Victory-compliant backbone.

Technical Specifications

Display Sizes 10.1, 13.3, 15.6, 17.3, 24.0″
LCD Resolution Full High Definition (1920 x 1080 and 1920 x 1200)
Video Inputs HD-SDI, HDMI, DVI/VGA, RS170 (NTSC/PAL)
Video Outputs HD-SDI, RS-170 (NTSC/PAL)
User Interface Programmable Bezel Keys, Optional Touch Screen
Options NVIS Compliance/Compatibility, Mounting Configurations
Power Input 10-36VDC
Modified Designs Dual CANBus, RS-422, Additional HDMI and HD-SDI Inputs, USB Hub, Larger Format LCDs*
Standards MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

Configurable MIL-Spec Design

Computer

ARM, ATOM and Celeron System on Module (SOM) options.

Expansion Slots

Endless options can be arranged with configurable GPIO.

EMI-461

Decades of experience designing and building rugged electronics to meet the stringent requirements of EMI-461 come together.

Bezel Keys

Programmable bezel keys allow for full control of auxiliary equipment on the vehicle.

Fully Sealed

The VTC series is protected to the IP67 standard for ingress of foreign substances.

MIL-STD 1275

Never worry about managing dropout, spikes, transients, or over voltage with the VTC’s wide range internal power supply.


FHDRM-2-innerpage

FHDRM

Full High Definition Digital Displays

VIEW MORE
OVRCR-innerpage

OVERSEER

High-Def Rugged Monitor and DVR

VIEW MORE

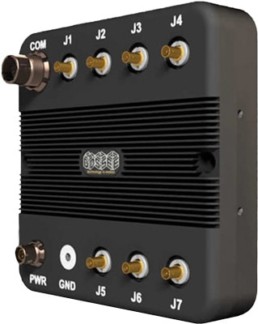

VH4
