AWM

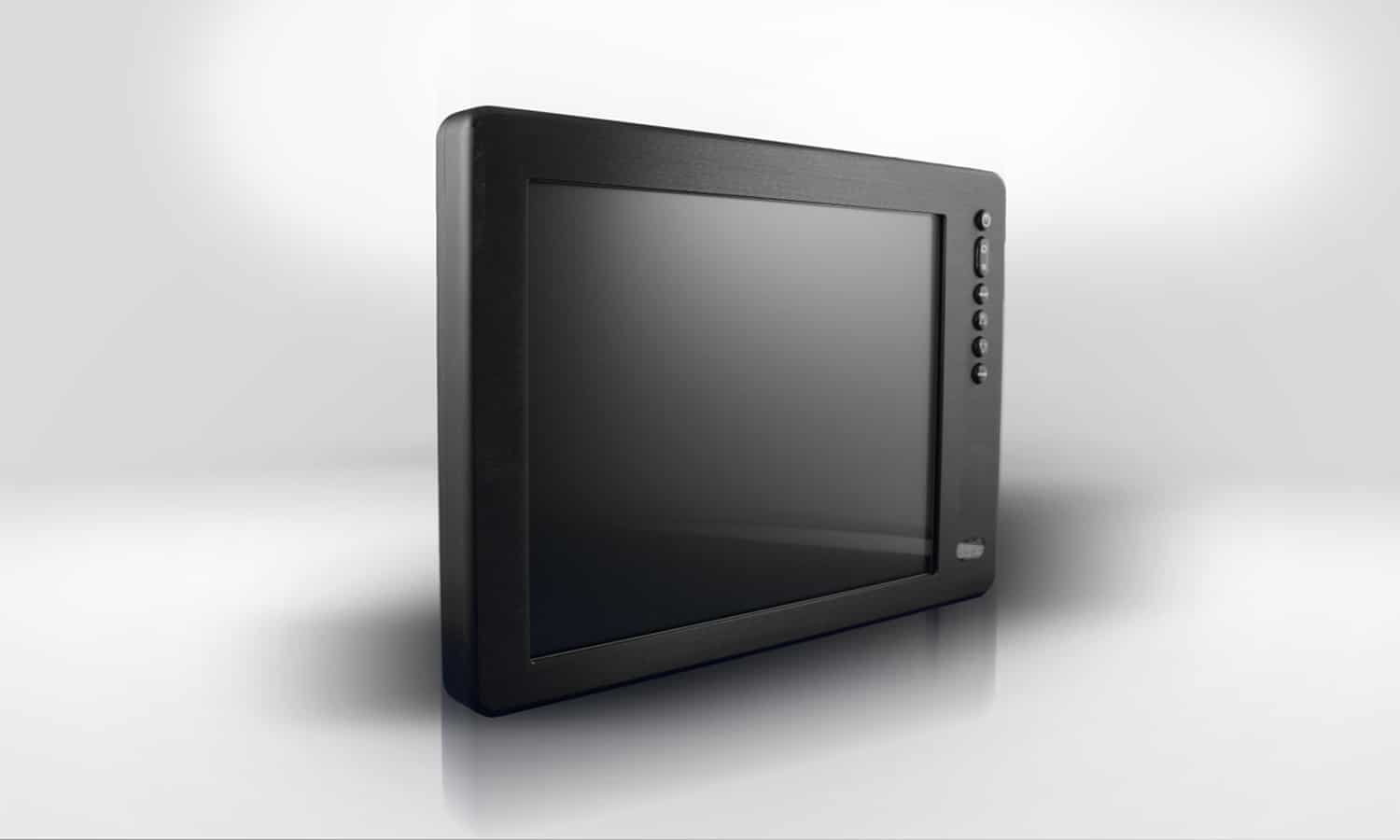

All-Weather Monitor (AWM) Series II

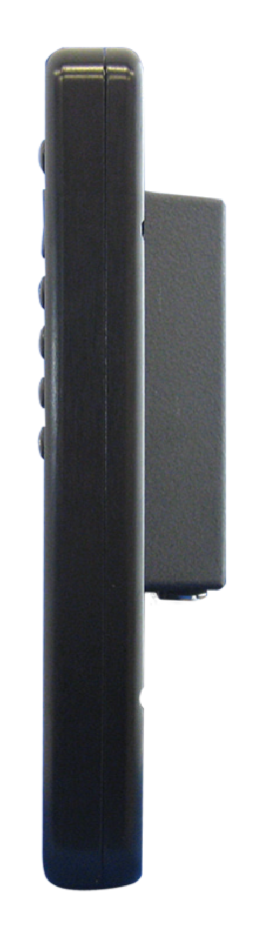

The slim-profile, lightweight AWM series displays are housed in a billet aluminum enclosure with sealed connectors. Multiple mounting options allow for easy integration into confined spaces typically found in rugged industrial and mobile applications. The AWM displays are available in four sizes with various video inputs including VGA, LVDS, and RS-170 (NTSC/PAL).

The AWM Family of Rugged Displays

Our products have been a cornerstone in a variety of industrial applications for nearly 20 years. We’ve designed and built countless customized iterations to meet our clients’ needs. Contact DSE to learn more about connector placement, signal pinouts, sizes, mounting options and more.

Download Product Datasheets

AWM Series II

AWM Series III

Technical Specifications

Display Sizes 8.4, 10.4, 12.1, & 15”
LCD Resolution SVGA (800 x 600) and XGA (1024 x 768)
Video Inputs VGA, RS170 (NTSC/PAL)
Video Outputs VGA, RS170 (NTSC/PAL)
User Interface On-Screen Menu, Optional Touch Screen
Options Mounting Configurations, Low Temperature Operation, LCD Resolution, USB Pass-Through, AC Power Input
Power Input 10-36VDC
Standards IP67, Wide Temperature, Shock, Vibration, Altitude

*Specifications may change depending on size and configuration. See data sheet for specific details.

Proven Industrial Design

~

Fully Sealed

Bring on the elements! The AWM family of products are sealed to the IP67 standard to prevent the ingress of water and dust.

Trusted Globally

AWM displays can be found worldwide on agriculture machines, mining equipment and marine vessels.

Outdoor Ready

With anti-reflective and anti-glare treatments, plus high-powered LCDs, the AWM series is perfect for direct sunlight applications.

Flexible User Interface

Touch Screen

An optional touch screen allows AWM users to access data and record task operations.

+

Interconnects

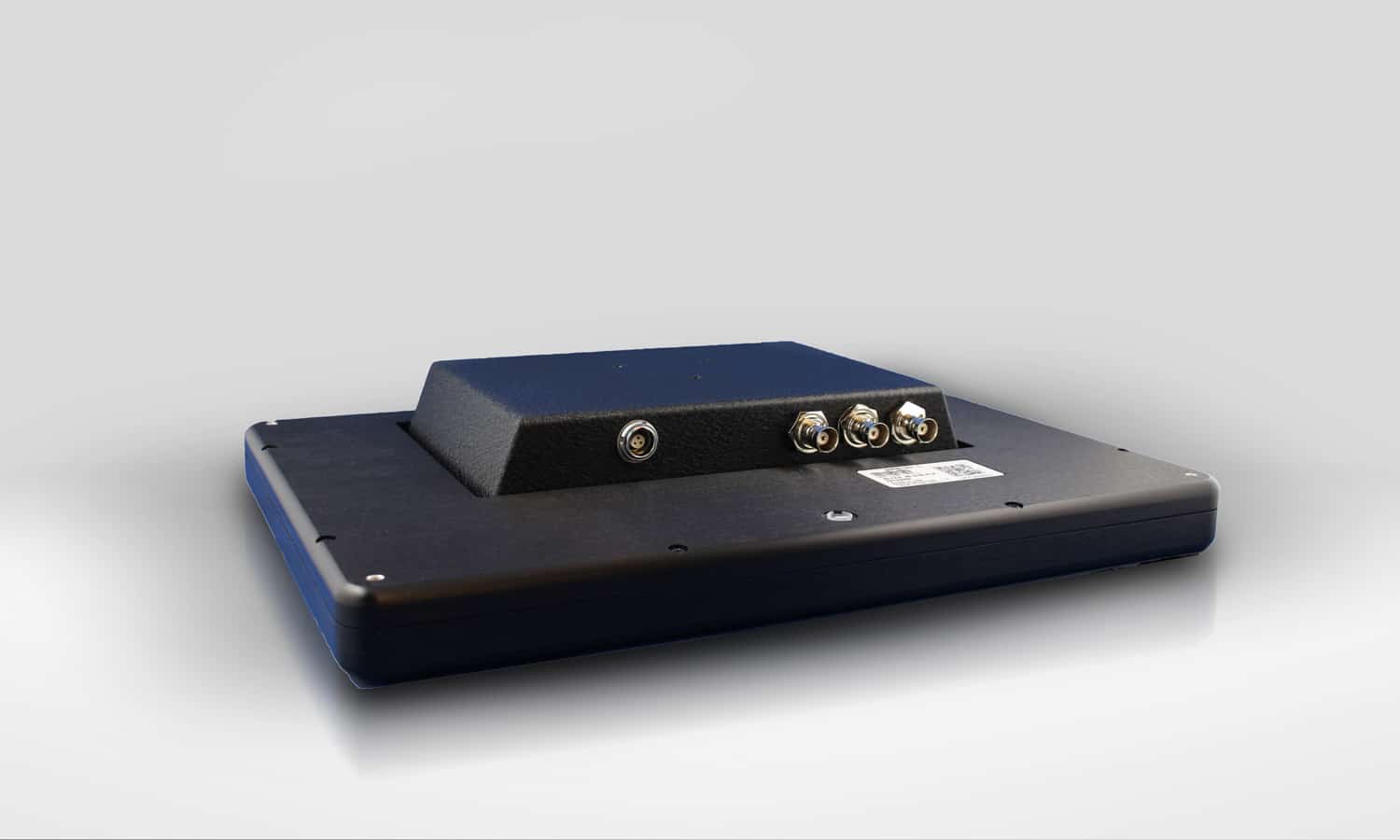

AWM employs rugged IP68 sealed connectors for video inputs and signal pass-throughs.

Control

The embedded menu and bezel keys allows users to adjust brightness, sharpness and clarity.

Rugged applications for today’s industrial fleets

MINING VEHICLES – OIL/GAS OPERATIONS – COMMERCIAL FARMING –
UNDERWATER EXPLORATION – INDUSTRIAL FOOD PREPARATION – BIOLOGICAL RESEARCH
