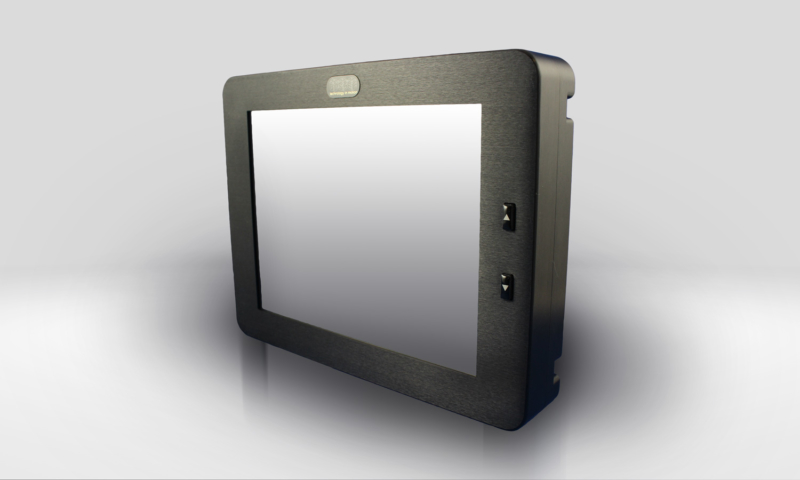

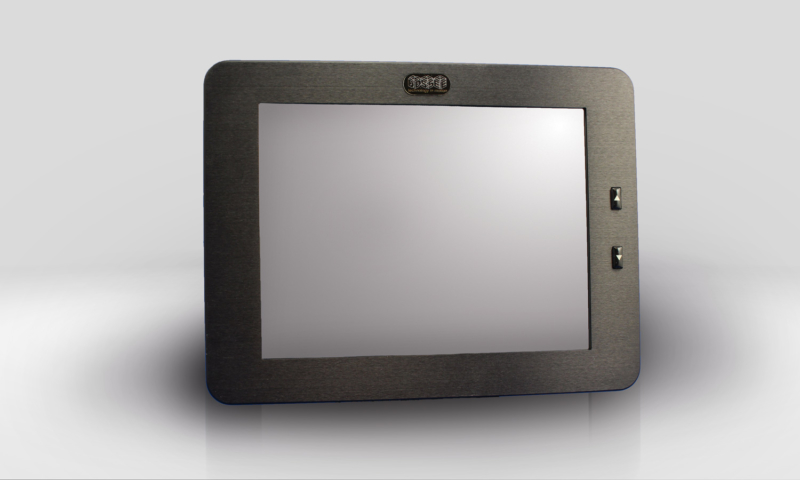

DLX

Industrial Rugged Touch Screen

The hardened DLX Series of Touch Screen Monitors is a drop-in replacement for the widely fielded legacy Planar systems. These form, fit, function alternatives were designed with one thing in mind, ruggedness. The DLX products will withstand exposure to extreme temperatures, shock, vibration, and debris.

The DLX screen features a VGA computer input and a resistive touch screen encased in a fully sealed, hard anodized milled aluminum housing. With a high bright LED backlit LCD the DLX displays are the perfect solution for all outdoor environments.

Technical Specifications

Display Sizes 8.4″ and 12.1″
LCD Resolution SVGA (800 x 600) and XGA (1024 x 768)
Video Inputs VGA
User Interface Touch Screen, Audio Output
Options Mounting  Configurations
Power Input 10-36VDC
Standards MIL-STD 810, MIL-STD 1275, IP67

*Specifications may change depending on size and configuration. See data sheet for specific details.

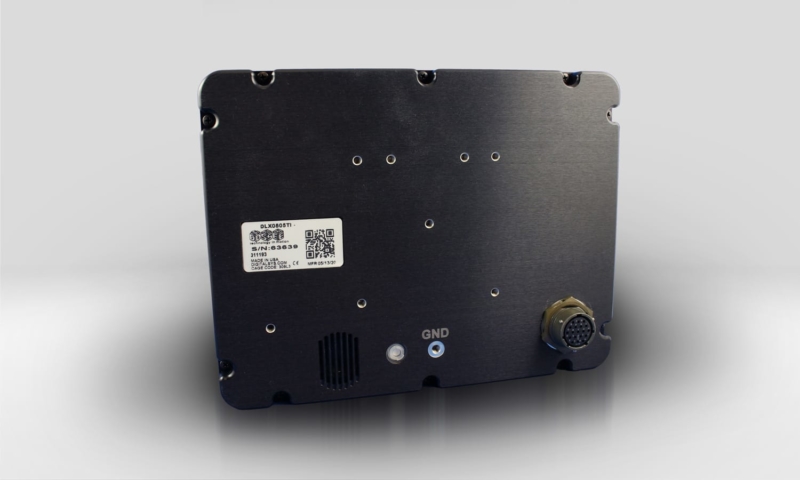

Hard Anodized Aluminum Enclosure

~

Fully Sealed

Water and dust are no match for the DLX. These products are sealed to the IP67 standard.

Durable Design

Milled aluminum finished with a hard anodized treatment protects the display from abuse.

Compatibility

Mechanically, DLX products are backwards compatible with legacy mining display installs. Contact DSE for 2D/3D models

Enhanced Industrial Touch Screen

At the heart of the DLX product is a resistive touch screen.  As the user’s primary input device, this technology allows for modern data analysis and collection for any application.  The hardened touch screen is proven to operate in the harshest environments, with gloved hands, and when exposed to foreign debris. The DLX touch screens provide unmatched accuracy with a lifespan exceeding one million actuations.

Engineered for Today’s Industrial Fleets

Haul Trucks – Excavators – Draglines – Command Stations – Offshore Drilling – Fracking Trucks – Dredgers – Cranes – Rail

The DLX rugged industrial display pairs with the KODIAK mission computer to deliver an all-in-one system for industrial fleets. Together, the DLX and KODIAK have logged over 30,000 hours in the field without failure during 2020. Discover what’s possible when durable design meets powerful computing.

WATCH THE VIDEO TO LEARN MORE →
