HDRM

High Definition Rugged Monitor

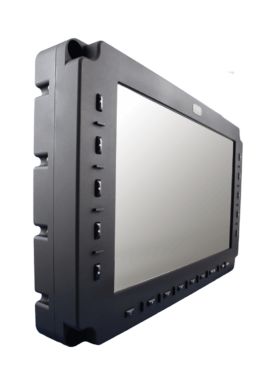

Offering a ruggedized design, low-power consumption, and high brightness, the ultra-thin High Definition Rugged Monitor (HDRM) displays up to 1080p HD video during critical operations. The rugged HDRM monitor ensures complete optical performance and full reliability while providing a small footprint for small spaces. The HDRM Series of displays is available in four sizes.

Technical Specifications

Display Sizes

9.0, 12.1, 14.1, 17.5″

LCD Resolution

High Definition (1280 x 768)

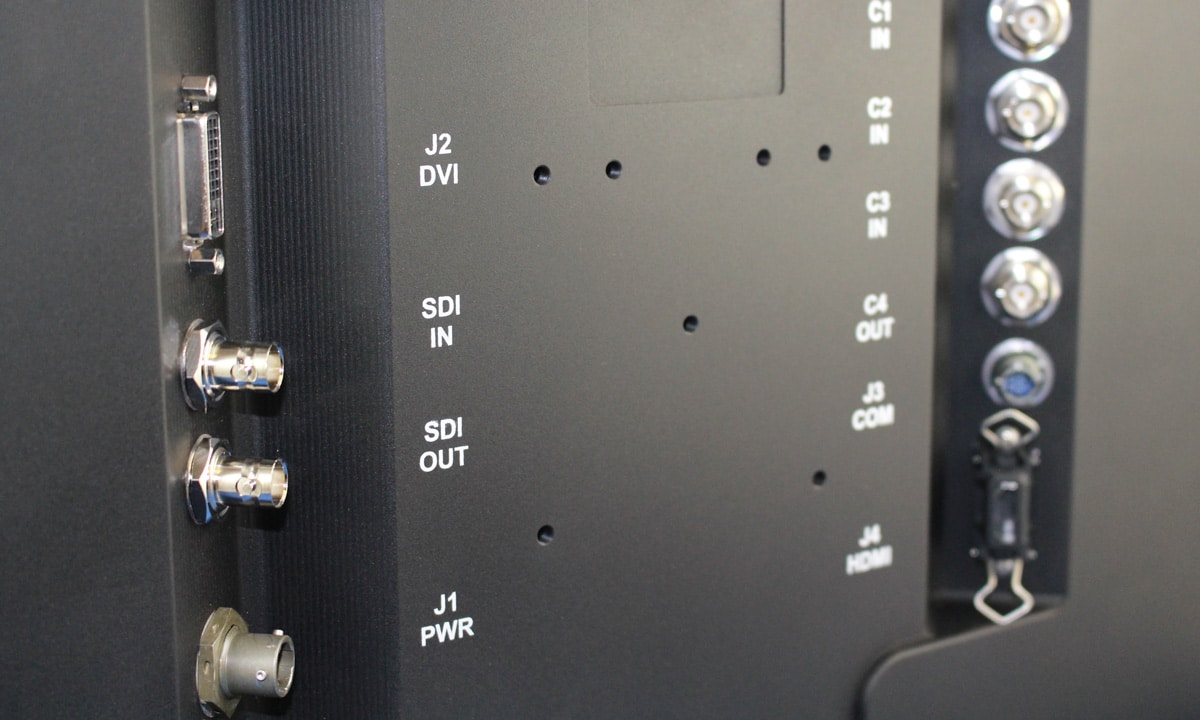

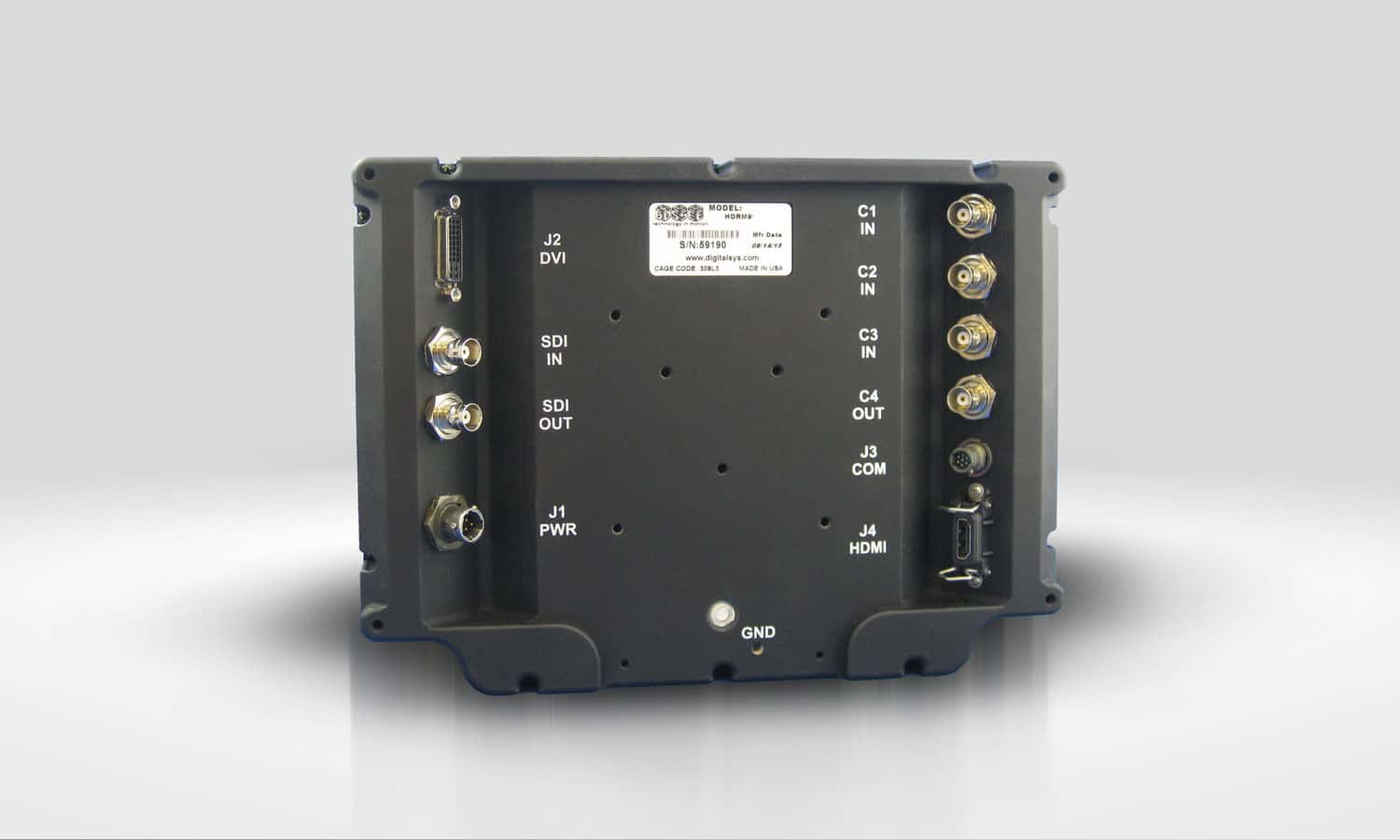

Video Inputs

HD-SDI, HDMI, DVI/DisplayPort/VGA, RS170 (NTSC/PAL)

Video Outputs

HD-SDI, RS-170 (NTSC/PAL)

User Interface Programmable Bezel Keys, Optional Touch Screen
Options NVIS Compliance/Compatibility, Mounting Configurations
Power Input 10-36VDC
Standards

MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

***Specifications may change depending on size and configuration. See data sheet for specific details.

Advanced Programmability

Bezel Keys

Take full command and control with 15 fully programmable bezel keys.

Customized Screens

Screen layout, scaling, picture-in-picture, and default settings are all user defined.

Remote Control

Dictate source-select, brightness levels, and power-on settings remotely.

Unmatched Optical Clarity

High Luminance

Our superior quality LCD modules are capable of high luminance to overcome direct sunlight environments.

Resolution

HDRM’s powerful LCD resolution provides the optical detail required to make informed decisions during critical missions.

High Contrast Ratio

Equally important as high brightness, high contrast ratio is essential to delivering exceptional imagery.

Field Tested, Lab Validated

The HDRM 9” display was fully qualified at a third-party certified laboratory for a United States Air Force program requiring compliance with MIL-STD 810, MIL-STD 461, and MIL-STD 704. The system successfully passed gun fire vibration, extreme shock, voltage transients, lightning strikes, and additional procedures testing the rigors of EMI 461. Contact DSE to learn more about our experience putting products to the test.
