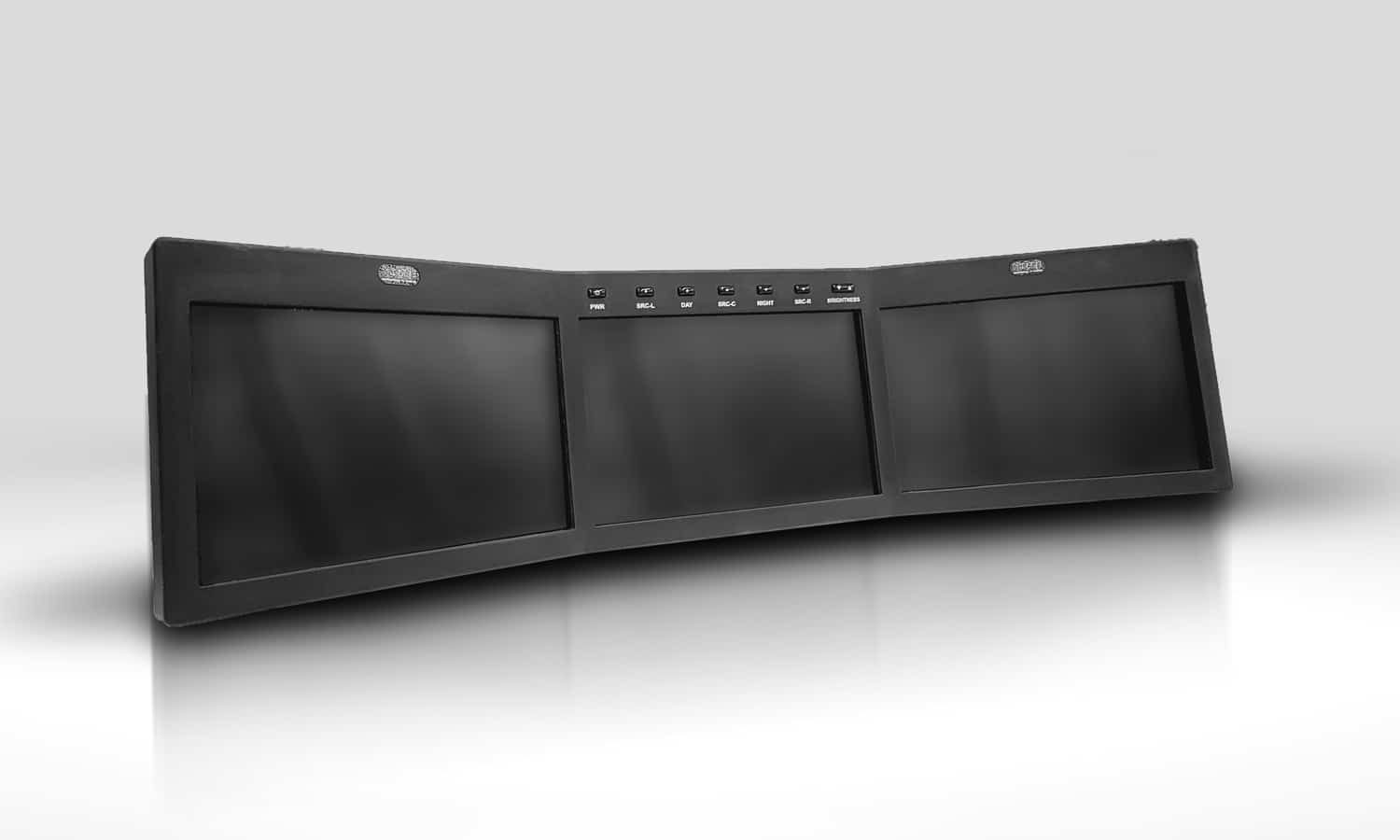

Typhon

Rugged Multiple Panel High Definition Display

The Typhon-10 is a situational awareness, high-resolution digital Display System supporting up to 9 independent camera video inputs. The self-contained milled aluminum enclosure houses 3 LCDs each with WUXGA resolution (1920 x 1200) giving the vehicle operator a comprehensive view of the mission’s surroundings. Video management of 6 distinct SDI and 3 RS-170 inputs allows for integration with both legacy and advanced digital sensors. The onboard CANBus communication interface permits remote control and access to features such as video source selection, built-in-tests, day/night modes and user preferences like backlight levels, video positioning, and image adjustments. Typhon-10 is the next-generation situational awareness video system.

Technical Specifications

Display Sizes Three 10.1″ panels
LCD Resolution 1920×1200
Video Inputs SDI Inputs (6) 3G/HD/SD, Composite Video Inputs (3)
Video Outputs SDI Outputs (6), Composite Video Inputs (3)
User Interface Bezel keys
Power Input 10-36 VDC
Standards MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

3 Times the Awareness

Multi-screen System

Three rugged displays power this fully-sealed contained system.

Situational Awareness

Designed to provide vehicle operators with enhanced awareness on the battlefield.

Next Generation FHD

Full high-definition provides the modern military fleet with quality, high-speed video.


Engineered for the Battlefield

EMI-461

Decades of experience designing and building rugged electronics to meet the stringent requirements of EMI-461 come together in the Typhon.


MIL-STD 1275

Never worry about managing dropout, spikes, transients, or over voltage with the Typhon's wide range internal power supply.


Fully Sealed

Bring on water, sand, dust, grease, and chemicals!  The Typhon series is protected to the IP67 standard for ingress of foreign substances.
