Products > Rugged Displays > Driver’s Vision Enhancer (DVE)

Driver’s Vision Enhancer (DVE)

Display Control Modules (DCM)

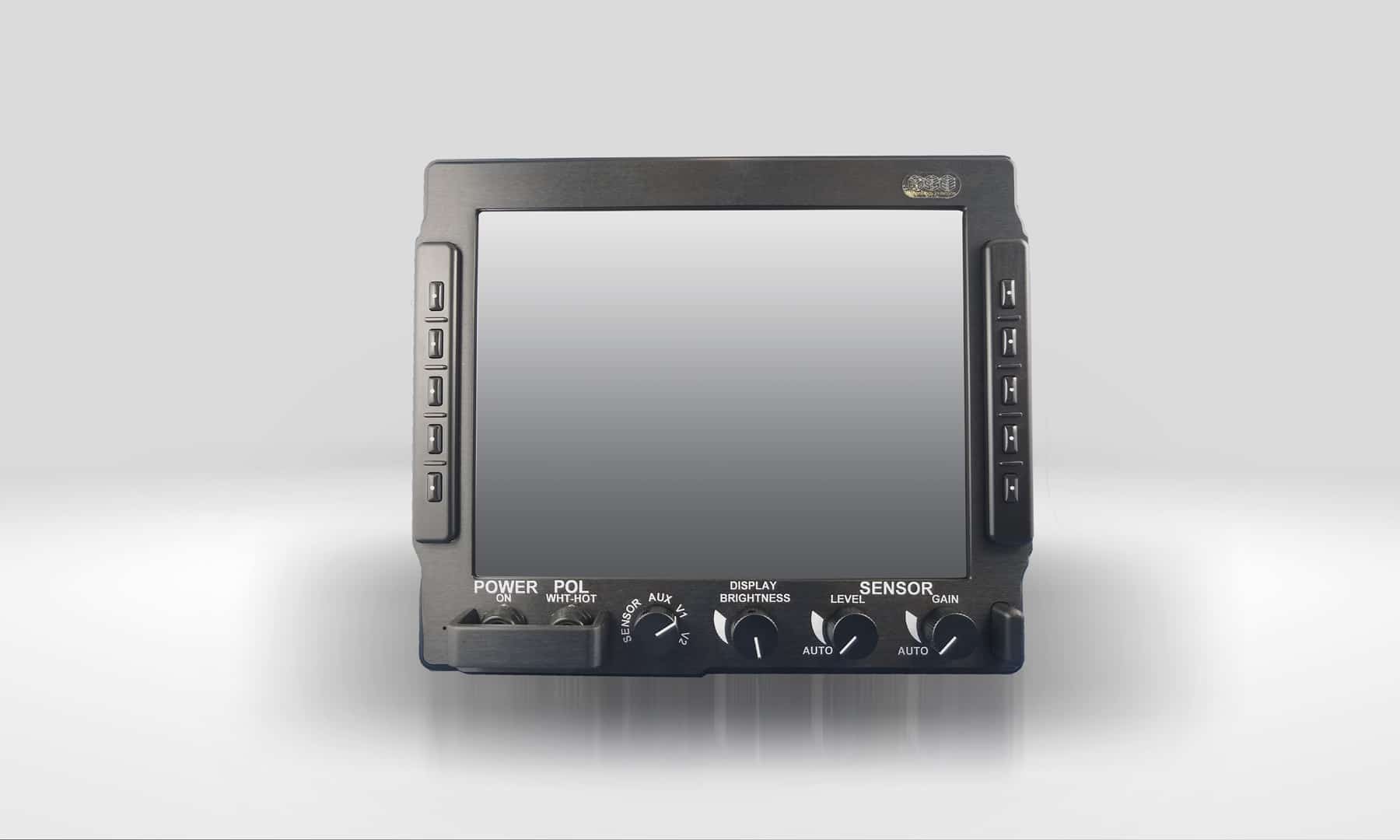

Greatly improving situational awareness and safety during mission-critical vehicle operations, DSE’s family of rugged DVE’s give drivers and crew members a tactical advantage on the battlefield. All DSE DVE displays are backwards compatible with legacy DVE system installations per MIL-PRF-49256D and ICD A3325865. Iterations of the standard Display Control Module include additional features such as programmable bezel keys, VGA inputs, integrated DVRs, and unique form factors. Contact DSE to learn more.

Technical Specifications

Display Sizes 6.5”, 8.4” and 10.4”
LCD Resolution SVGA and XGA
Video Inputs RS-170 (NTSC and PAL), VGA
User Interface Sensor Module control, RS-232, RS-422
Options Touch Screen, NVIS Compatibility, Programmable Bezel Keys
Power Input 10-36VDC
Standards MIL-STD 810, MIL-STD 461, MIL-STD 1275, IP67

*Specifications may change depending on size and configuration. See data sheet for specific details.


Backwards Compatibility

Mechanical

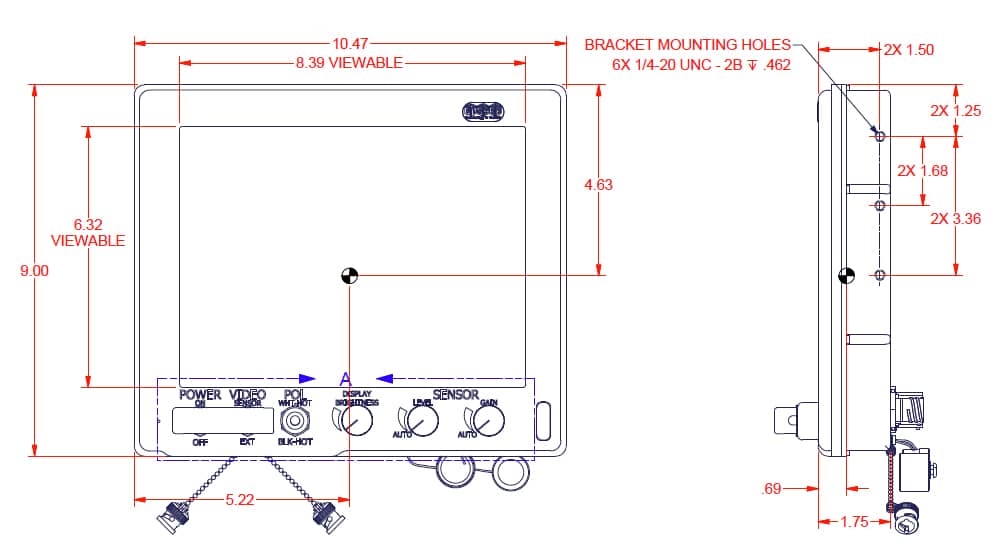

Our Display Control Modules are backwards compatible with government specified mounting brackets.

User Interface

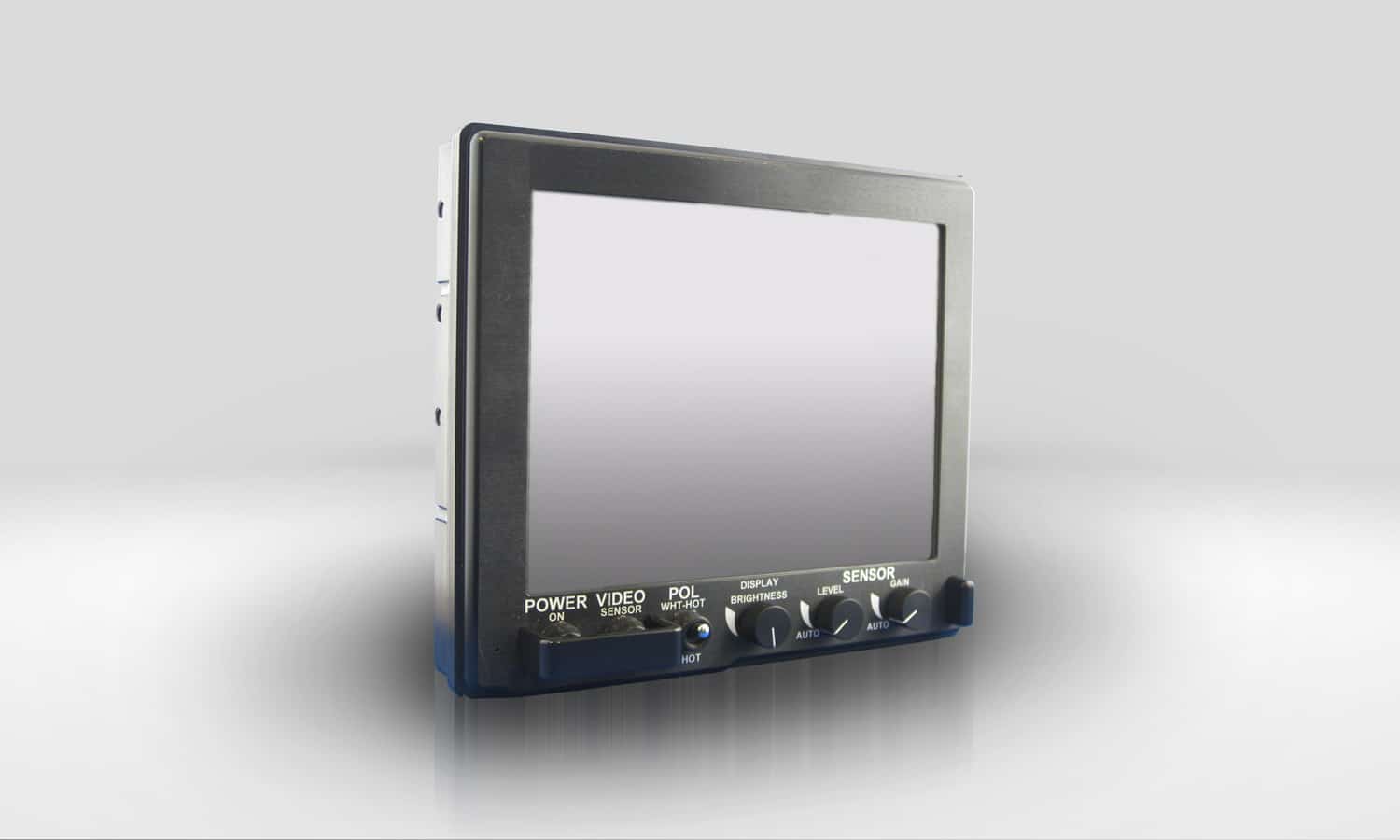

DVE Sensor controls such as polarity, level, gain, and brightness are simplified with toggle switches, rotary potentiometers, and/or bezel keys.

Signal I/O

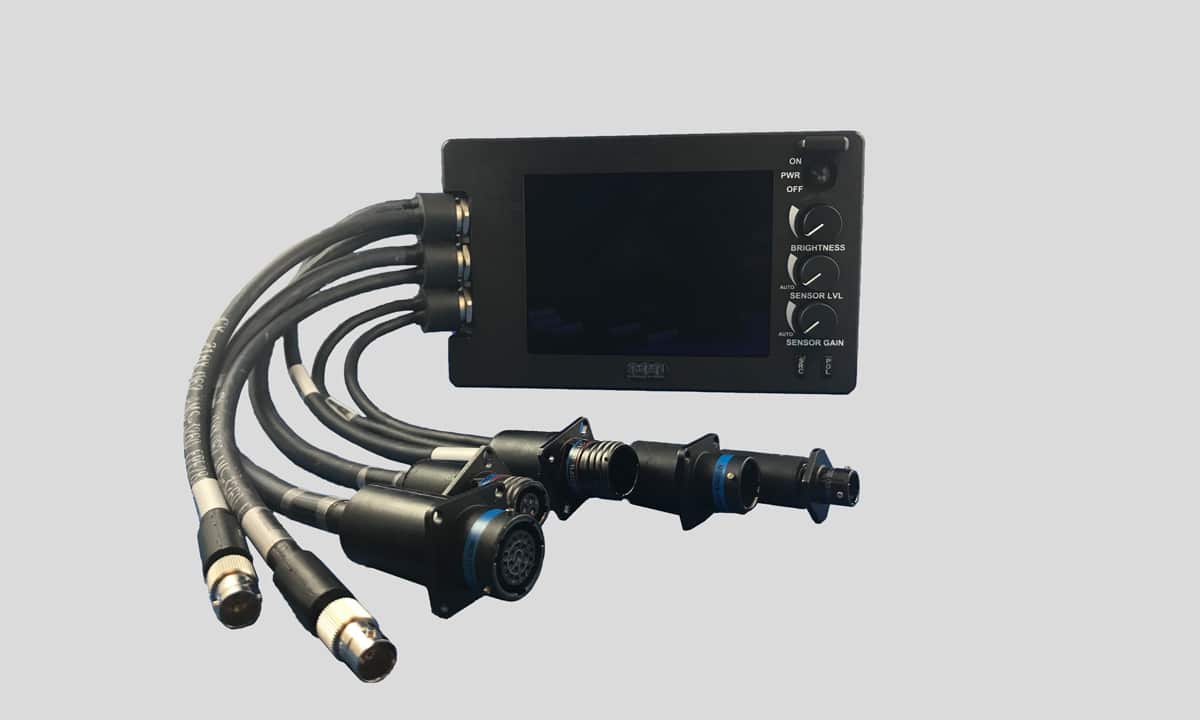

We incorporate proven connectors and signals to support legacy DVE Sensor video, auxiliary cameras, and RS-422 comms.


Trusted in Leading Vehicle Programs

Our family of DVE products can be found on-board military vehicles across the globe. Our participating programs include:

  • M1 Abrams

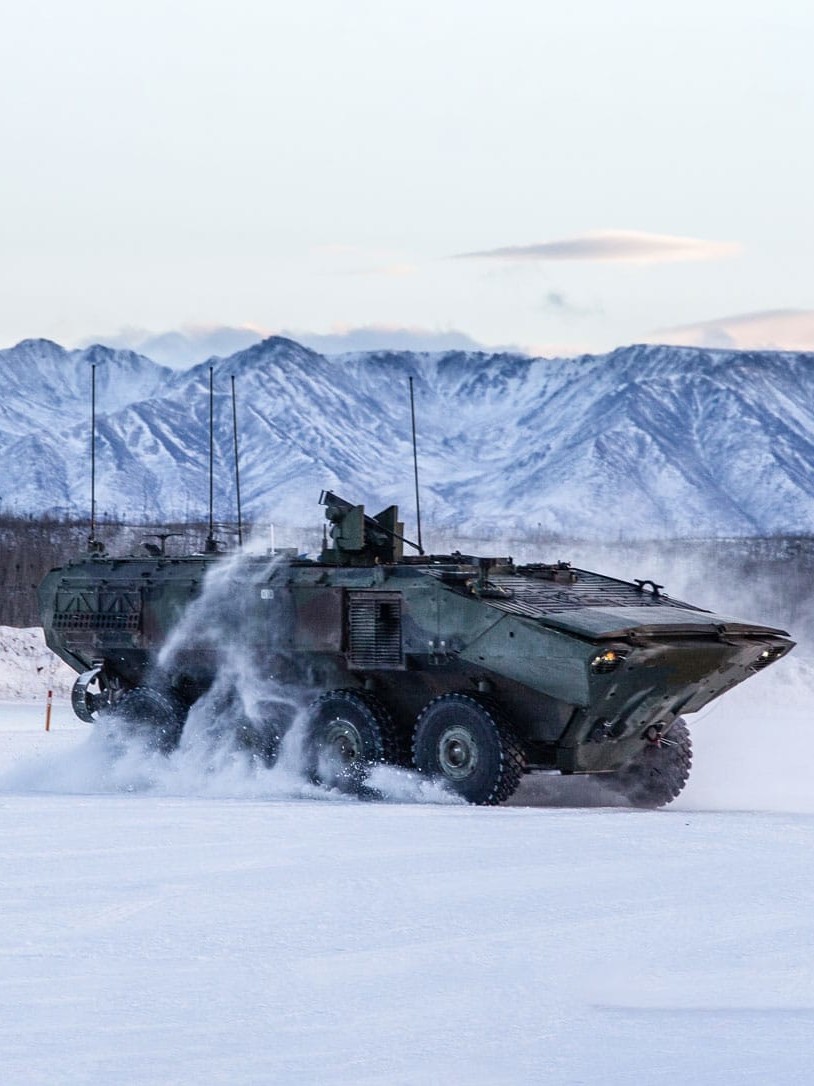

  • Amphibious Combat Vehicle (ACV)
  • Mobile Strike Force Vehicle (MSFV)
  • Medium Mine Protected Vehicle (MMPV)
FHDRM-2-innerpage

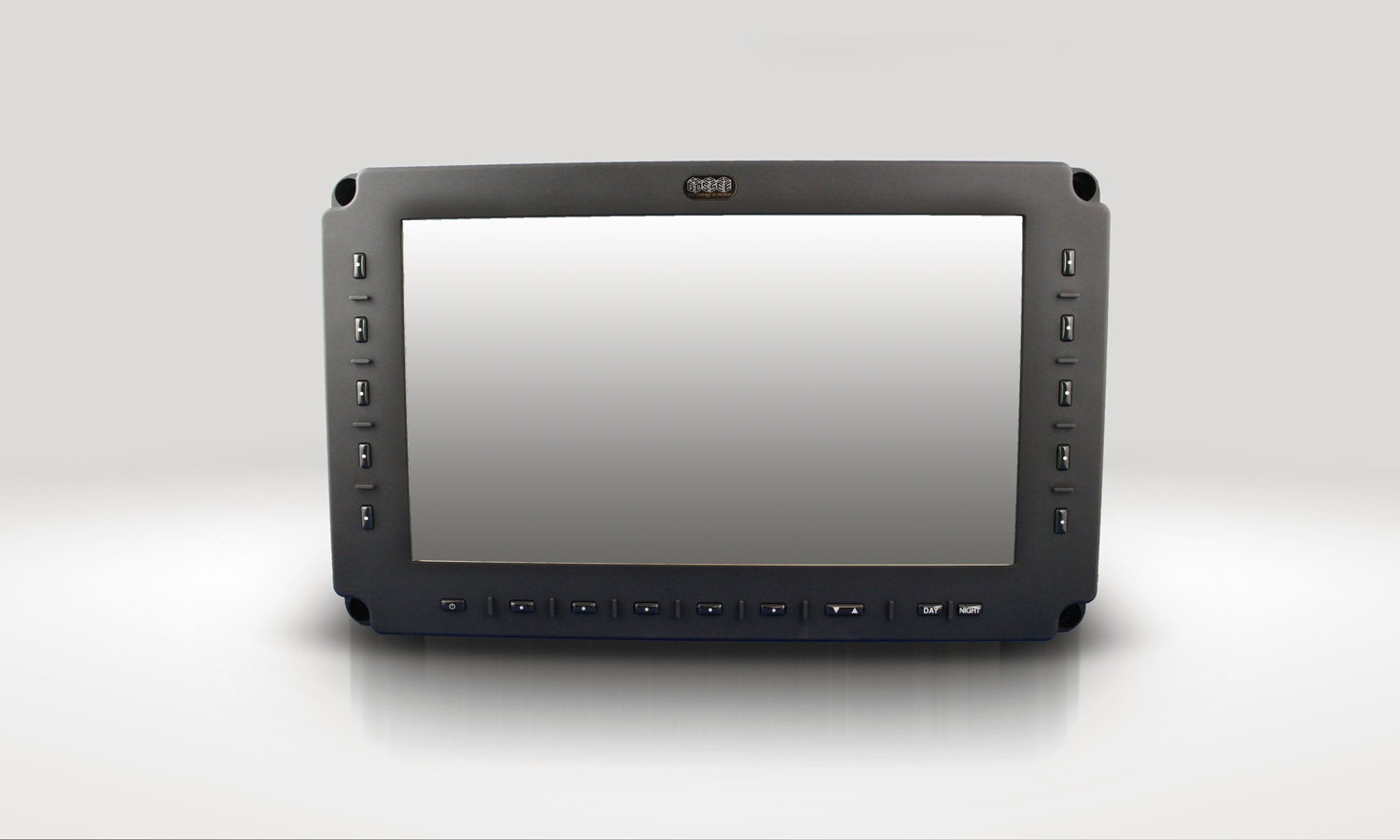

FHDRM
