Products > Mission Computers KODIAK-620

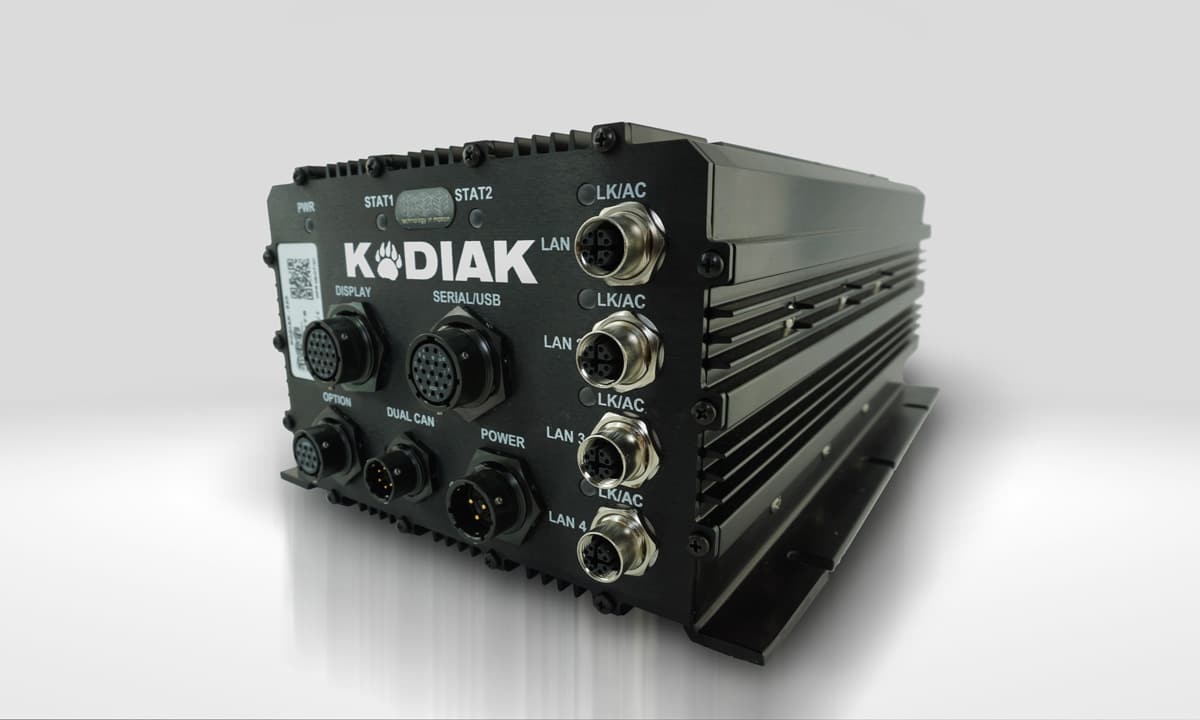

KODIAK

Rugged Mission Computer

The KODIAK Series of computers feature a robust set of inputs/outputs for today’s cutting edge industrial fleets. The fully sealed enclosure ensures ingress of water and dust will not impede the mission. Its modular electronic architecture permits use of not only the latest Quad Core™ 7th Generation Intel® i7 processors but also a suite of proven Atom® and ARM based CPUs. On-board systems such as a gigabit ethernet switch, GNSS (GPS, GLONASS, Galileo, BeiDou), Dual CANBus, GPIO, USB/Serial, audio, WiFi, cellular, and a battery backup, make the KODIAK system a perfect all-in-one system for many rugged applications. Contact the DSE team to learn more!

Technical Specifications

KODIAK-610

An economical solution for those rugged environments which may not need the Intel i-Series processor or battery backup.  A modular design allows for Atom and ARM based processors, optional inputs/outputs, and expanded storage.

Display Sizes

Intel® Atom™ Quad Core

Clock Speed

1.9GHz

RAM

8GB

SSD

250GB to 4TB

I/O

VGA, USB (5), RS232 (4), GPIO (5), Ethernet (5), Audio

Options

GPS, WiFi, Cellular, CANBus, Bluetooth

Power Input 10-36VDC
Standards

MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

KODIAK-620

Built with the powerful i7 Intel Dual Core processor, the KODIAK-620 has the horsepower to support any workload.  GPS, WiFi, CANBus, and Internal Battery Backup make this product an ideal candidate for today’s heavy-industrial and defense fleets.

Display Sizes

Intel® i7™ Dual Core

Clock Speed

3.9Ghz (Burst), 2.8GHz

RAM

16GB

SSD

250GB to 4TB

I/O

VGA, USB (5), RS232 (4), GPIO (5), Ethernet (5), Audio

Options

GPS, WiFi, Cellular, CANBus, Bluetooth

Power Input

10-36VDC, Battery Backup

Standards

MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

*Specifications may change depending on size and configuration. See data sheet for specific details.

Rugged applications for today’s industrial fleets

Haul Trucks – Excavators – Draglines – Command Stations – Offshore Drilling – Fracking Trucks – Dredgers – Cranes – Rail

Assortment of Processors

Designed and built with the widely available COM Express Type 6 module, the KODIAK Computers can utilize Atom, Celeron, Xeon, and Core processor types with numerous chipsets. Configurable clock speed, RAM capacity, and memory allow end users to choose the most appropriate feature set.

Extended Communications

WiFi

Long range, 802.11 dual WiFi supports remote operations that require connectivity without loss.

GPS

Get the most positional accuracy with the KODIAK’s 72 concurrent channel onboard GPS module.

Bluetooth

Tie it all together by connecting accessory devices seamlessly with Bluetooth.
