WorkForce
HD Video and USB Hub
Today’s harsh industrial environments require a monitor capable of supporting digital inputs no matter the severity of use. Utilizing full high definition LCDs, the WorkForce Displays have the flexibility to support two DVI (analog or digital) signals. The high-bright LED WF Display Series delivers a hardened solution with ease of connectivity in mind. With 5 USB ports, operators can quickly view thumb drives, locally interface a computer network with mouse or keyboard, or simply power handheld devices. Optional features include a resistive touch screen, integrated heaters for low temperature operation and EMI-461 compliance, making the WorkForce a solid solution for industrial applications.
Technical Specifications
| Display Sizes | 7.0, 10.1, 13.3, 15.6, 17.3, 24.0″ |
| LCD Resolution | Full High Definition (1920 x 1080 and 1920 x 1200) |
| Video Inputs | DVI-I (Digital or Analog) |
| User Interface | USB (5), Optional Touch Screen |
| Options | Low Temperature Operation |
| Power Input | 10-36VDC |
| Modified Designs | RS-232, CANBus, Programmable Bezel Keys |
| Standards | MIL-STD 810, MIL-STD 1275, IP67 |
Proven Industrial Design & Flexible User Interface
Fully Sealed
WorkForce is sealed to the IP67 standard to prevent the ingress of water and dust.
Trusted Globally
WF displays support agriculture machines, mining equipment and marine vessels.
Outdoor Ready
With anti-reflective and anti-glare treatments, plus high-powered LCDs, WorkForce is perfect for direct sunlight applications.

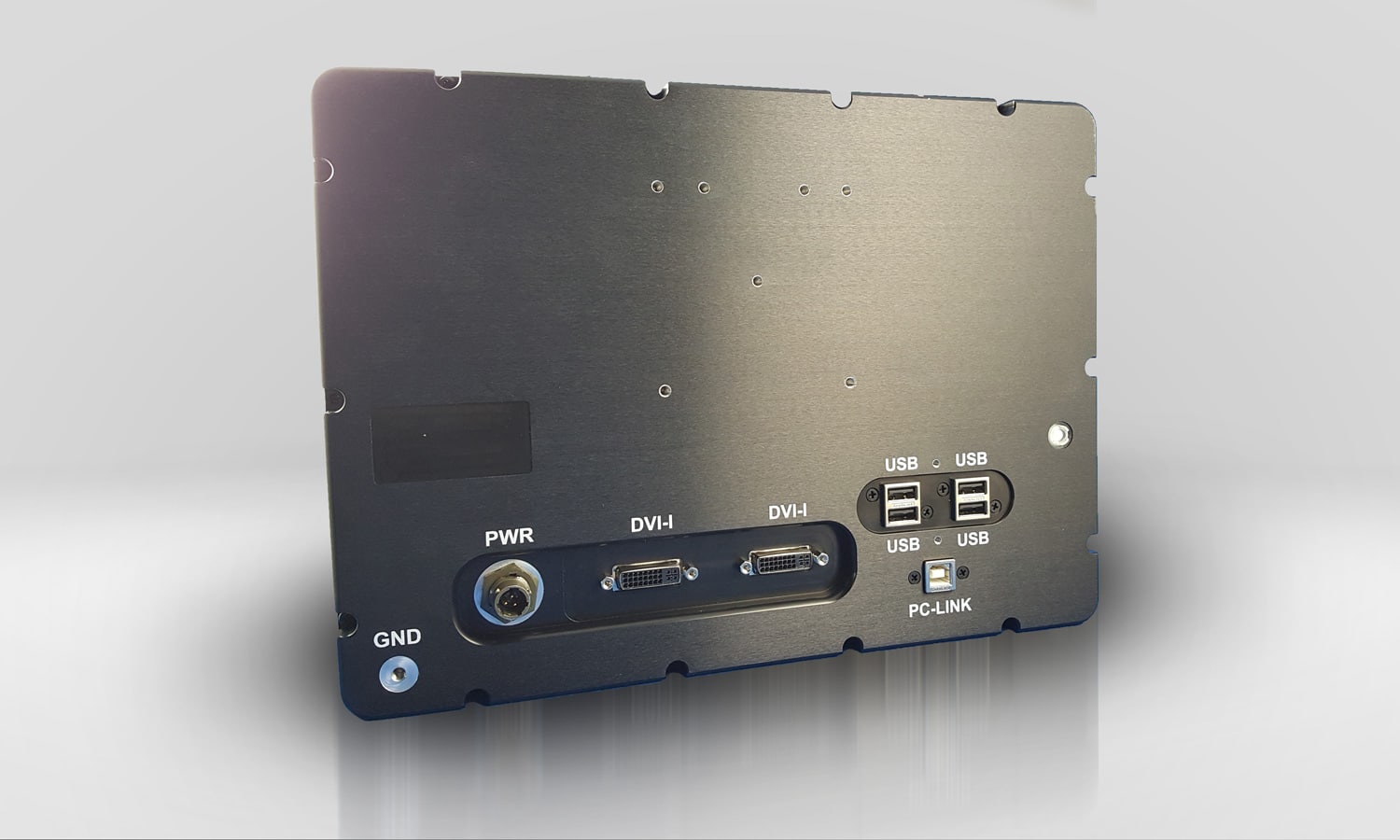

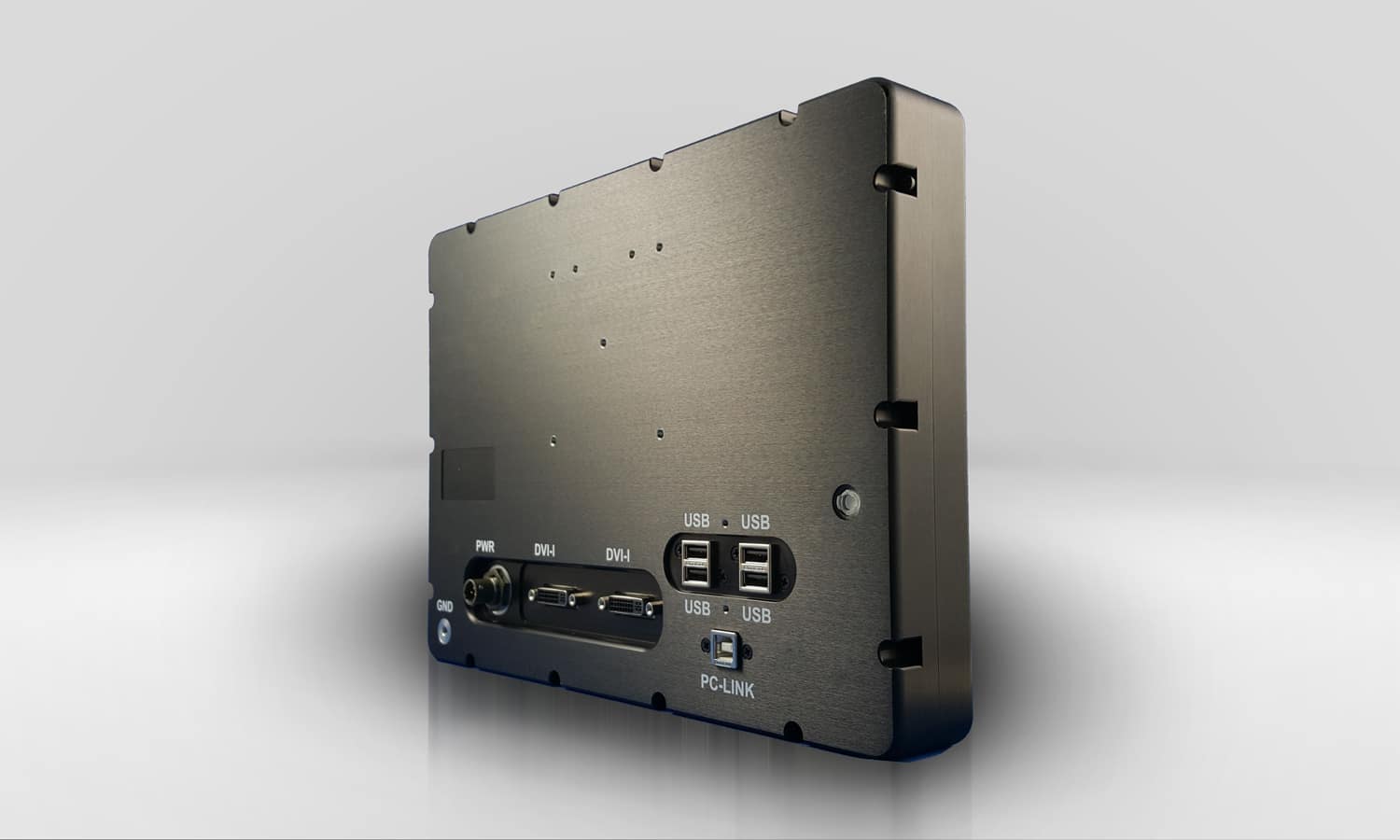

USB Hub
Easily manage accessory devices rather than relying on connectivity to the system computer.
Touch Screen
With a million touch life, the resistive touch screen is a durable interface for all jobs.
Flexible Options
Programmable bezel keys and diverse communication protocols permit inclusive integrations.
